The New Standard Super-fast & Smooth The all-new Formuler Z10 is the new standard for IPTV and OTT Android devices with state-of-the-art features like AV1 decoding, Android 10 OS, and Formuler's exclusive MYTVOnline2 media-viewing platform. Formuler’s exclusive MYTVOnline2 is the best media viewing platform in the market providing users with a refined and professional User Interface. Extensive optimization and seamless integration with Android system and native player allows users to play virtually any media format and zoom effortlessly through the menus at top speed.

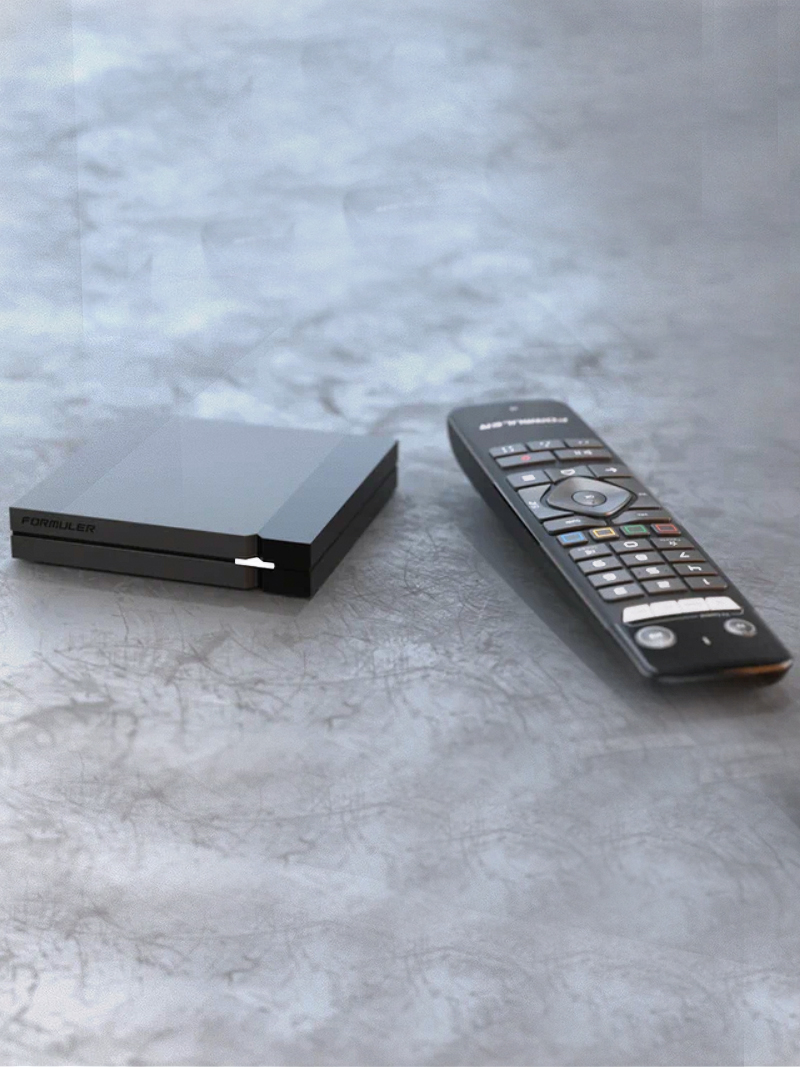

Formuler Z10
Formuler Z10
Formuler Z10
Formuler Z10

Technical Specifications

Output Resolution: 4K (3840 x 2160)
CPU : RealTek RTD1319
GPU : ARM G31 MP2
RAM: 2GB DDR4 @2400MHz
Storage: 16GB eMMC
Operating System : Android 10

Networking
Wireless : Dual-Band 2x2 AC Wireless
BT : 5.0
Ethernet : 100M

​ Decoder
Video decoder : 4K@60fps, AV1, H.265(HEVC), AVS, H.264(AVC, MVC), Real, MPEG1/2/4, VC-1
Audio decoder : MPEG-1 Layer 1,2,3(2-CH), MPEG-2 Layer 1,2, HE AAC V1/V2
Support Language: Global
DRM : Widevine L1, L3

Dimensions
Length: 94mm
Width: 94mm
Thickness: 16mm
Color: Black

Ports
Power Input : 1
USB3.0 : 1
HDMI : 1
LAN : 1
Micro SD Card : 1
IR Extension : 1
Power input

Power rating : 12VDC / 1A
Power Consumption : Max. 12W
Standby Power : Max. 0.5W (Ultra low power)

Optional

ATSC USB Tuners:
- Hauppauge WinTV-HVR-955Q (2040:b123)
- Hauppauge WinTV-HVR-955Q (2040:b150)
- Hauppauge WinTV-dualHD (2040:026d)

​ DVB-T USB Tuners:
- Hauppauge WinTV-dualHD (2040:8265)
- Geniatech MyGica T230 Black (0572:689A)
- Geniatech OEM T230 White (0572:c68a)
- Xbox One Digital TV Tuner (045E:02D5
